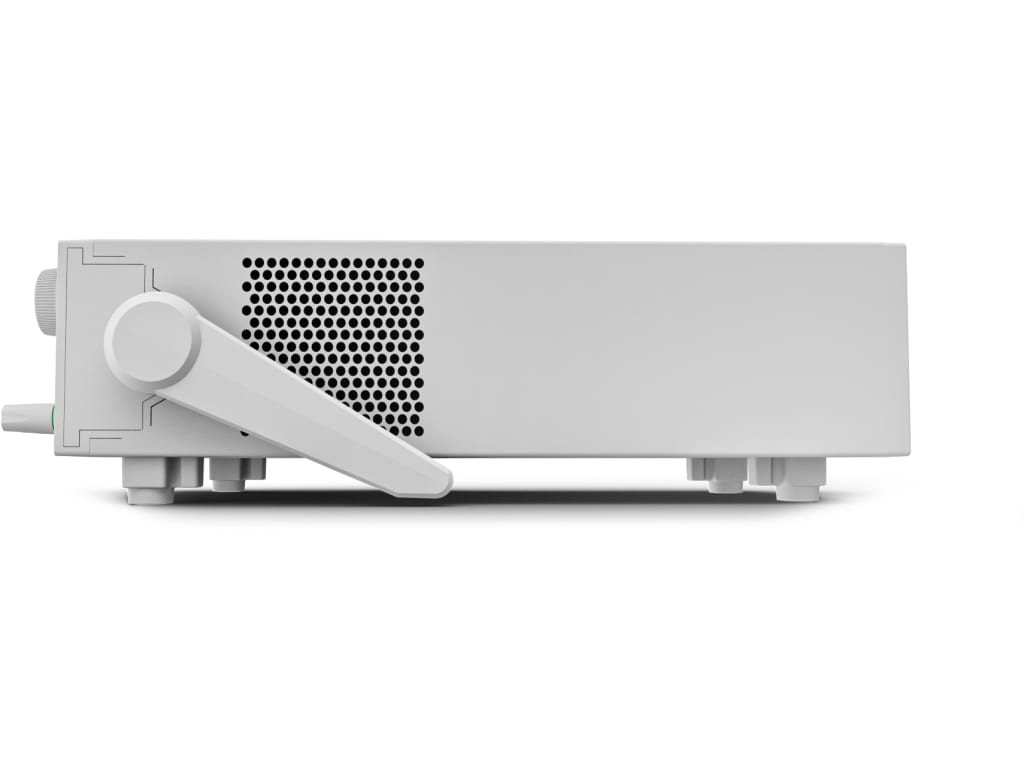

Image 3
ITECH | DC Power Supply

IT6861A

Rs. 34830.00

The ITECH IT6861A is a high-performance programmable DC power supply designed to deliver precise voltage and current outputs for laboratory, development, and production environments. With 1 mV / 0.1 mA resolution and fast transient response, the IT6861A supports stable and efficient testing for a variety of DC-powered devices. Its intuitive interface, standard USB/RS232 ports, and robust overload protection make it a versatile and reliable tool for electronics professionals..

  • Detail
  • Special Features
  • Specification

The IT6861A provides engineers and technicians with stable, high-resolution voltage and current control essential for precision testing. Its linear regulation design ensures excellent output accuracy and low ripple, supporting sensitive electronic development. With the built-in LIST and STEP functions, users can simulate complex voltage/current sequences without an external controller. The unit also supports standard SCPI commands, making it ideal for integration in automated test systems.

Advanced protection modes like OVP/OCP safeguard both the unit and the connected devices from faults, while the rear interface supports convenient connection to PC systems for remote control and data logging. The IT6861A is widely used in laboratories, educational institutions, and industrial automation settings.

  • 1 mV / 0.1 mA resolution for precise output control

  • High-speed transient response and low ripple noise

  • Built-in LIST/STEP/TRANS function for dynamic testing

  • Overvoltage (OVP) and overcurrent protection (OCP)

  • Support for SCPI protocol and LabVIEW drivers

  • Built-in USB and RS232 communication interfaces

  • Large 4-digit LED display with user-friendly controls

  • Compact benchtop design ideal for R&D and production

Parameter Value
Output Voltage 0 – 60 V
Output Current 0 – 1.5 A
Output Power 90 W
Load Regulation ≤ 0.01% + 3 mV (Voltage), ≤ 0.2% + 3 mA (Current)
Line Regulation ≤ 0.01% + 3 mV (Voltage), ≤ 0.2% + 3 mA (Current)
Ripple & Noise ≤ 1 mVrms / ≤ 3 mArms
Display Resolution 1 mV / 0.1 mA
Programming Time < 50 ms
Protection OVP, OCP, OTP, Foldback
Communication Interfaces USB, RS232
Dimensions (W×H×D) 225 × 100 × 320 mm
Weight Approx. 4.5 kg
Operating Temperature 0 °C to 40 °C
Warranty 1 Year Manufacturer Warranty
